Low Profile Drive

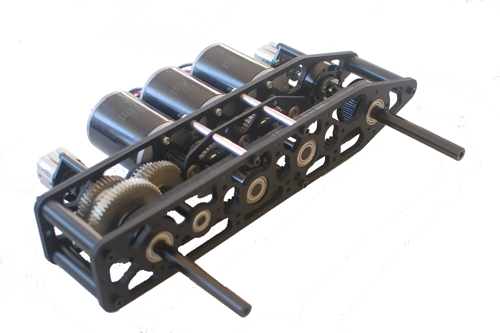

The Low Profile Drive is a modification for West Coast Products DS 3 CIM gearbox with optional PTO. To be clear, this assembly replaces the gear box plates and reorients the motors to all fit in 3 inches of height. The PTO option (also must be purchased from WCP/VexPro) is driven off the 2nd axle. A HTD 142 tooth belt is included, but quantity 2, 30 tooth, HTD 5mm pitch, 15mm wide pulleys are needed or 4x for a 3 wheel drive train (order from WCP or VexPro). Pictured motors, cylinders, DS gearbox parts, are not included. Necessary idler gears and axle are included.
